Fully Automatic Liquid Filling Machine

  • Fully Automatic Liquid Filling Machine
  • Fully Automatic Liquid Filling Machine

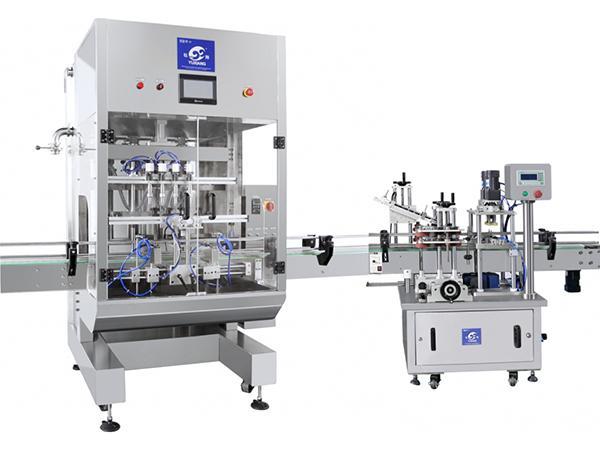

Fully automatic liquid filling machines are used to fill glass bottles, plastic barrels, metal containers and other containers. They are used to fill shampoo, detergent, bath oils, vegetable oils, other oils, and other liquids that range from no viscosity to a large viscosity. We also customized this equipment based on customer specifications.

Technical Parameters
1. Filling range: 1000-5000 ml / g
2. Production capacity: 25-30 times / min
3. Maximum filling error: ≤ 5 ‰
4. Compressed air consumption: about 50L / min
5. Air pressure: 0.4 ~ 0.6Mpa
6. Power: 1.5kw
7. Power supply voltage: 220V 50HZ

System components
Automatic bottle machine
Filling machine
Cover machine
Capping machine
Electric control box
Air compressor

Work Process
The fully automatic filling machine is a newly designed machine with more than 75% of it made from high quality stainless steel. Featuring a sleek appearance and touch screen control, operation is simple and transmission parts are controlled through high quality, precise pneumatic components with a stable performance. It is safe, reliable and has an outstanding measurement accuracy.

1. High degree of system automation: filling and gland assembly line operation, filling volume control system uses variable frequency motor, PLC and touch screen to control. The motor is used to adjust the filling volume, and is easy to operate.

2. Precise filling: The filling container is pneumatically oriented, and can automatically adjust between different specifications and different container shapes to ensure correct filling.

3. Anti-drip: Using a cylinder to prevent drips, as well as seal the filling mouth while using a drain recovery device to prevent any other drippings.

Yuxiang as a leading automatic liquid filling machine manufacturer and supplier, mainly provides filling equipment for cosmetics manufacturing and household chemical manufacturing plant. Our company offer complete liquid process line including mixing, agitating, dispensing, homogenizing, filling and sealing as well as custom solutions. For the different types of materials like lotion, cream, ointment products, our filling machines can be designed and configured in customer needs.
