Aerosol Manufacturing Line
Aerosol Manufacturing Line

Yuxian perfume manufacturing lines meet the requirement of customers and they are suitable for all kinds of perfumes with plastic or glass bottles. The filling speed of our manufacturing line is 1800~2100pcs/h and diameter of the bottle ranges from 4.5mm to 20mm.

Production process
Reverse Osmosis Water Treatment Equipment——Perfume Freezing Filter Machine——Perfume Manufacturing Equipment——Bottle Filling Machine——Perfume Crimping Machine——Inkjet Coding Printing Machine

Production process

Single equipment

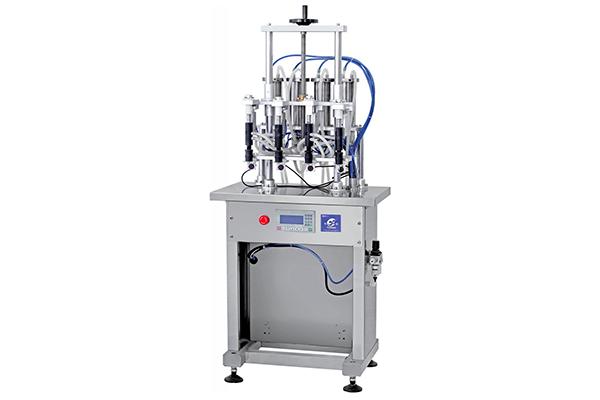

Bottle filling machine

Bottle filling machine
Our bottle filling machine adopts negative pressure pneumatic control and don't need power supply, which has choice of 2 heads, 4 heads and 6 heads. The material of bottle can be made of glass or plastic.

Technical parameter
Bottle Height ≤250mm
Max diameter of bottle mouth ≤ø 20mm
Min diameter of bottle mouth ≥ø 4.5mm
Adjustable liquid level (from bottle mouth) 26-50mm
Dimension (not including reservoir) 660×470×1330mm
Suitable environmental temperature (0-30)℃
Power supply 3AC 38V
Vacuum pump XD-020(explosion-proof 2X-4A)
Pumping rate 5.5(explosion-proof 4)L/s
Power of motor 0.75 Kw

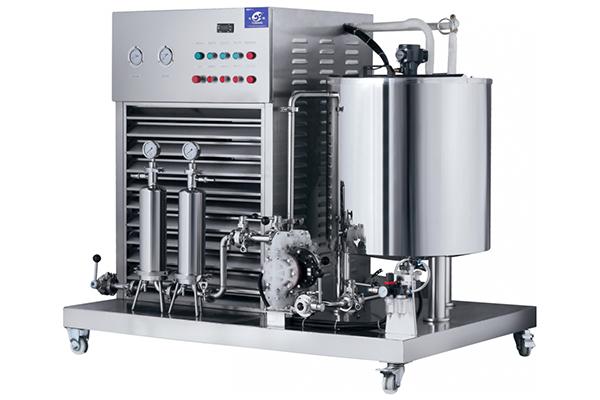

Perfume Freezing Filter Machine

Perfume Freezing Filter Machine
This equipment finishes the procedure of perfume clarification and filtration by freezing and the material of filtering membrane is polypropylene.

Technical parameter
Model Lh 3P -200 Lh3P -300 Lh5P -300 Lh5P -500 Lh10P -500 Lh10P -1000 Lh15P -1000
Freezing power 3P 3P 5P 5P 10P 10P 15P
Freezing capacity 200L 300L 300L 500L 500L 1000L 1000L
Filter fineness 0.2um 0.2um 0.2um 0.2um 0.2um 0.2um 0.2um

Perfume Freezing Filter Machine

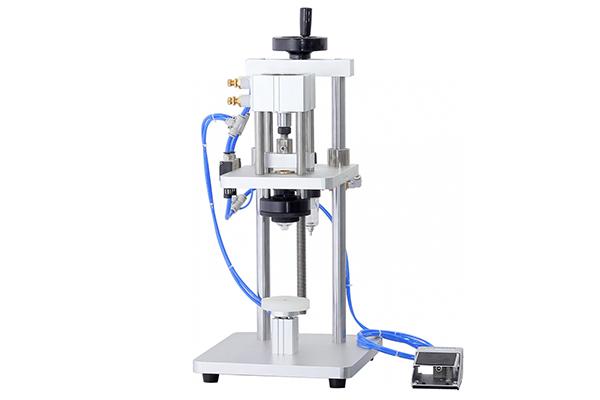

Perfume crimping machine
This kind of perfume crimping machine is designed for spinning cap of perfume, which is suitable for atomizer in the filling bottle of perfume.

Technical parameter
Bottle height 30-100 mm
Diameter of bottle mouth 10-25 mm
Spin cap torsion 4-8KG/cm
Dimension 300*250*600(mm)
Bleed pressure 0.4-0.6MPa

Service
1. Our company has focused on cosmetic equipment for more than 18 years and we can help you develop the formula for your cosmetic products.
2. We offer guidance in purchasing raw materials for your products.
3. Our engineers will help install and debug the equipment in production fields and provide training for workers free of charge.
4. Our factory has enough storage of equipment parts such as stainless steel valves, hoppers, sight glass lighting, steel pipes and so on. If you need any parts for our equipment, we can supply it.
5. We offer upgrade services for all kinds of equipment.
